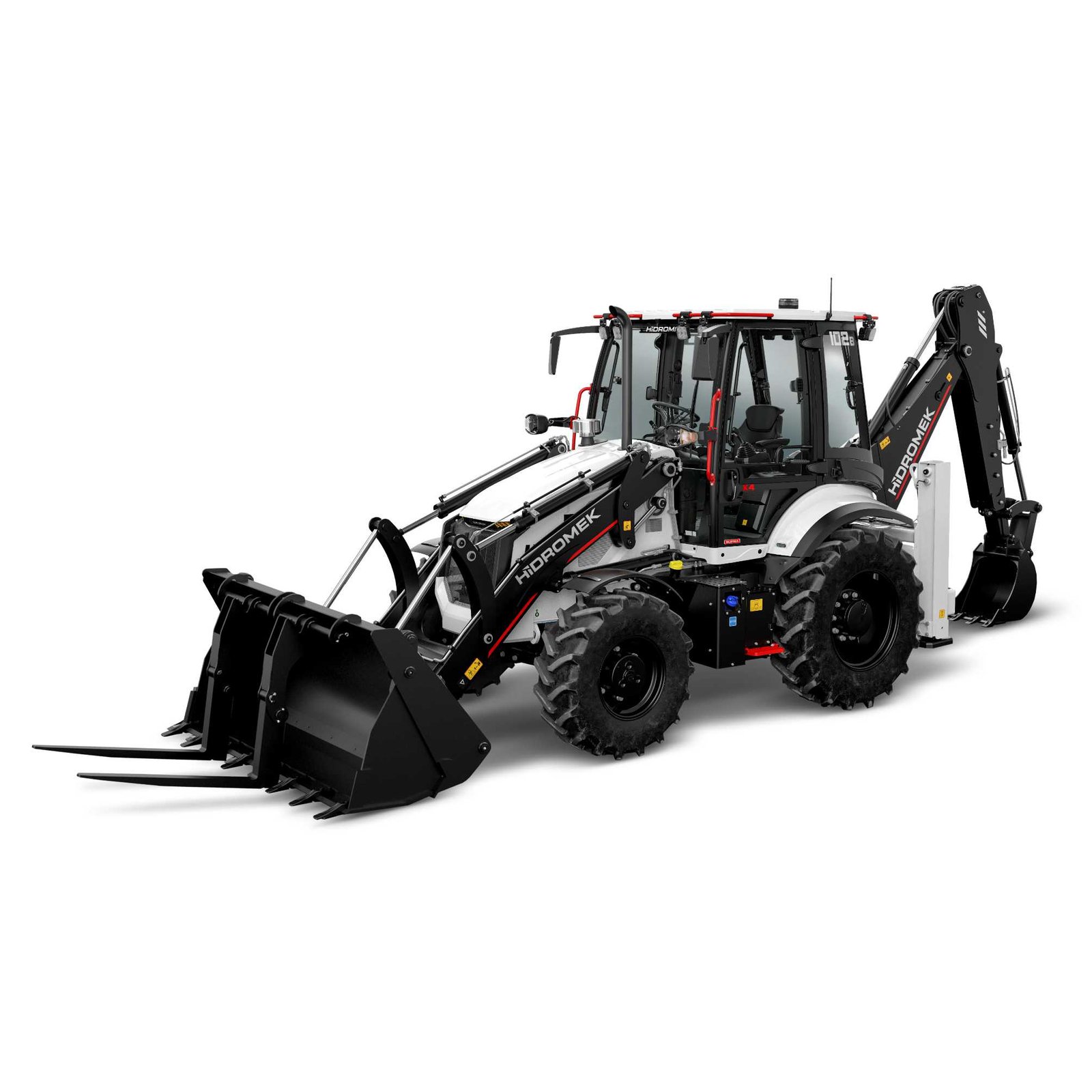

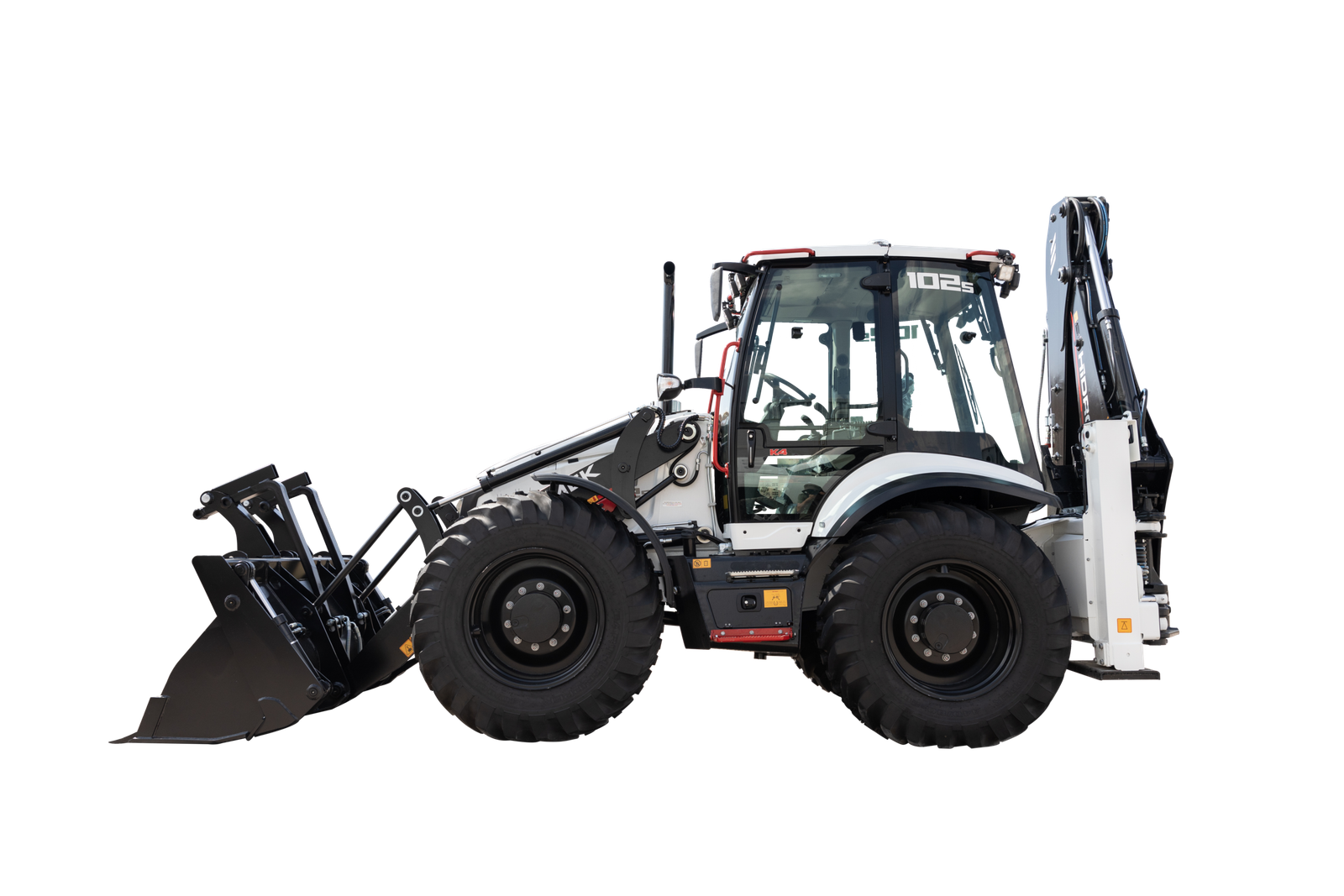

HMK 102 S SUPRA BACKHOE LOADERS

DESCRIPTION

K4 Series, designed for severe geographical conditions and heavy working conditions, increases your productivity with its strong structure and efficient hydraulic system providing maximum breakout force even at lower revolutions and having high oil flow.

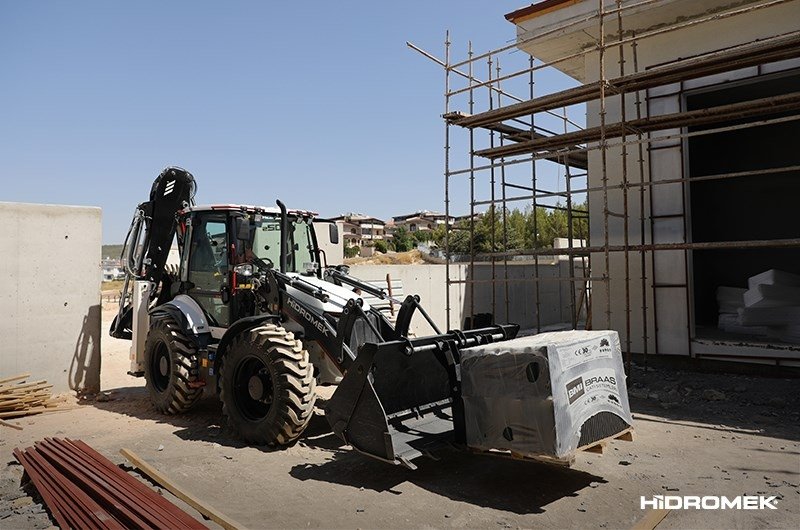

HİDROMEK K4 Series backhoe loaders facilitating works in excavation, infrastructure, superstructure, agriculture, forestry, landscaping and industrial areas thanks to their use with different attachments such as leveling shovel, forklift, hammer, auger, log, pendulum bucket, snow plow, scrap and paper collection bucket, bottom opening (big bag) bucket, stone collecting bucket, trapeze bucket, ripper and polyp attachment provide the benefits you expect.

20% Faster
K4 series backhoe loaders with accelerated movements through improved loader cylinder design do a lot of work in a short time during loading and unloading operations.

3% More Efficient
K4 Series backhoe loaders produce more work with less fuel as a result of the improvements made in cylinder design.

• • • ENGINE

      • Brand – Model

        Perkins, 904J-E36TA
      • Maximum Power

        100 HP (74,4 kW) @2200 rpm
      • Displacement

        3,621 cc
      • Type

        High power and torque output, water cooled turbocharged diesel engine.
      • Maximum Torque

        430 Nm @1500 rpm
      • Bore & Stroke

        ø 98 x 120 mm
      • Emission Class

        EU:Stage 5, US: Tier 4 final
    • HYDRAULIC SYSTEM
      Pressure
      255 bar
      Type
      Closed type hydraulic system with variable displacement piston type pump, renewable flowsharing and valves with regeneration
      Main pump flow
      163 L/min @2200 rpm

      TIRES
      Front
      16,9 – 28 14 Ply Rating
      Rear
      16,9 – 28 14 Ply Rating

      DRIVING SPEED
      1st Gear
      4 km/h
      2nd Gear
      7 km/h
      3rd Gear
      9 km/h
      4th Gear
      15 km/h
      5th Gear
      24 km/h
      6th Gear
      40 km/h

      LOADER PERFORMANCE
      Maximum loader bucket breakout force
      7380 kgf
      Loader Bucket Capacity
      1.2 m³
      Maximum loading arm breakout force
      7380 kgf
      Lifting capacity to maximum height
      3660 kgf

      OPERATING WEIGHT
      Operating Weight
      9.650 kg

      TRANSMISSION
      Type
      Autoshift transmission for heavy duty service
      Number of Gear
      6 forward, 3 reverse gears with Lock-Up
    • • ENGINE

        • Brand – Model

          Perkins, 904J-E36TA
        • Maximum Power

          100 HP (74,4 kW) @2200 rpm
        • Displacement

          3,621 cc
        • Type

          High power and torque output, water cooled turbocharged diesel engine.
        • Maximum Torque

          430 Nm @1500 rpm
        • Bore & Stroke

          ø 98 x 120 mm
        • Emission Class

          EU:Stage 5, US: Tier 4 final
      • HYDRAULIC SYSTEM

        • Pressure

          255 bar
        • Type

          Closed type hydraulic system with variable displacement piston type pump, renewable flowsharing and valves with regeneration
        • Main pump flow

          163 L/min @2200 rpm
      • TIRES

        • Front

          16,9 – 28 14 Ply Rating
        • Rear

          16,9 – 28 14 Ply Rating
      • DRIVING SPEED

        • 1st Gear

          4 km/h
        • 2nd Gear

          7 km/h
        • 3rd Gear

          9 km/h
        • 4th Gear

          15 km/h
        • 5th Gear

          24 km/h
        • 6th Gear

          40 km/h
      • LOADER PERFORMANCE

        • Maximum loader bucket breakout force

          7380 kgf
        • Loader Bucket Capacity

          1.2 m³
        • Maximum loading arm breakout force

          7380 kgf
        • Lifting capacity to maximum height

          3660 kgf
      • BACKHOE PERFORMANCE

        • Backhoe Bucket Capacity

          0.18 m³
        • Maximum backhoe bucket breakout force

          7020 kgf
        • Maximum arm breakout force

          3160 kgf
      • OPERATING WEIGHT

        • Operating Weight

          9.650 kg
      • TRANSMISSION

        • Type

          Autoshift transmission for heavy duty service
        • Number of Gear

          6 forward, 3 reverse gears with Lock-Up
