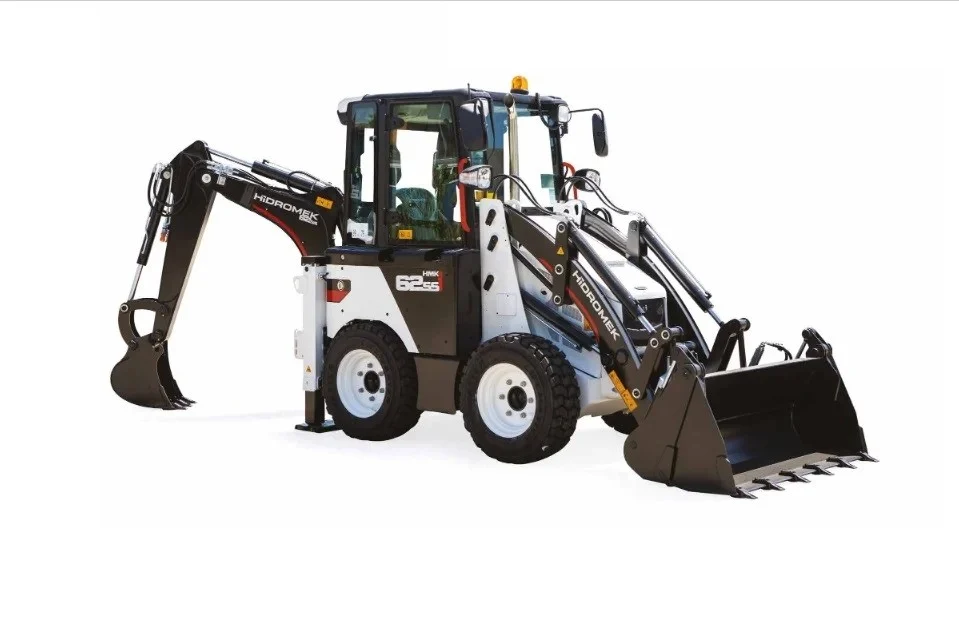

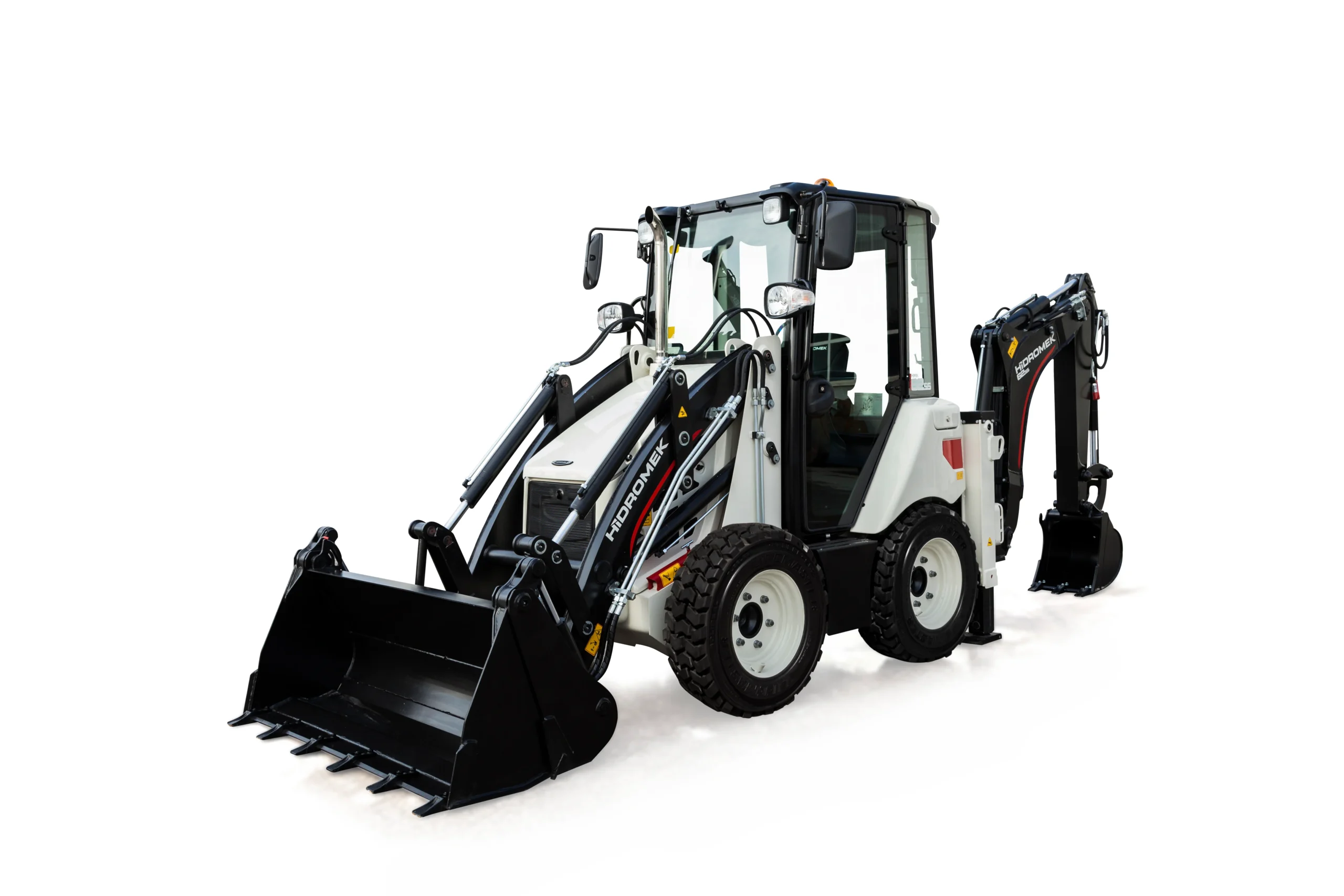

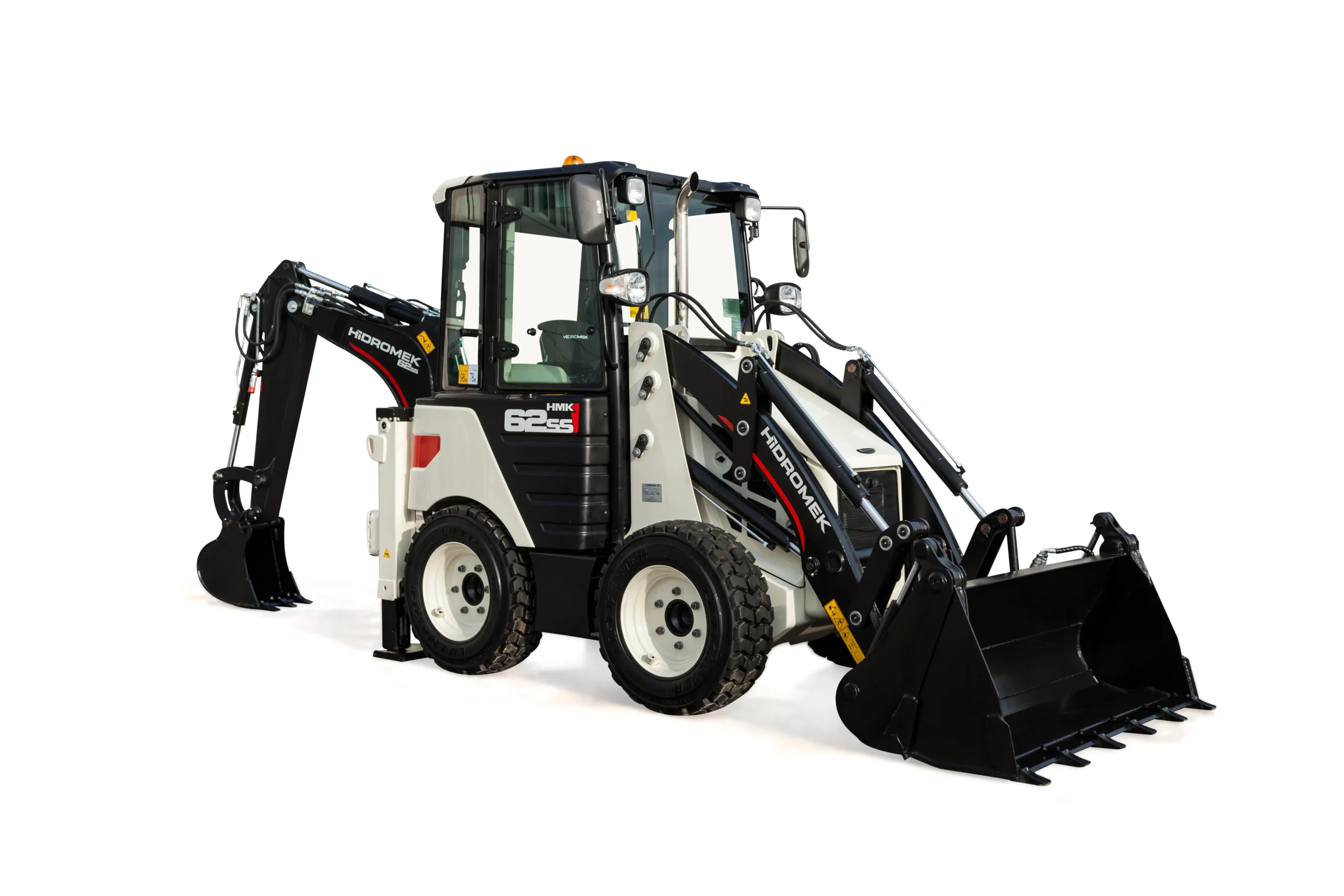

HMK 62 SS BACKHOE LOADERS

DESCIRPTION

HİDROMEK HMK 62 SS provides customer with a compact but reliable and strong machine even in the toughest conditions and with long working hours.

You can execute all works requiring two different machines, a mini excavator and a mini loader, with a single machine. HMK 62 SS offers you eligible investment costs and the possibility of spending less time for more work.

The compact size of the machine, ability to turn 360 degree on its own axis, banana boom of backhoe, standard additional auxiliary hydraulic lines make HMK 62 SS ideal for urban constructions and agricultural applications where the space is often limited.

ENGINE
Make : KUBOTA
Type : V2403-M-TEU4 D Diesel Engine
Number of Cylinders : 4 in line
Bore & Stroke : 87 x 102.4 mm
Displacement : 2434 cm3
Maximum Power : 44 kW, 59 HP (2700 rpm)
Maximum Torque : 160 Nm (1600 rpm)
High power and torque output, water cooled
turbocharged diesel engine.
Compatible with USA EPA Tier 4 Interim European EU
Stage III-A exhaust gas emission regulations

HYDRAULIC SYSTEM
Main Pump Flow : 61 lt/min (2700 rpm)
Pressure : 220 bar
Travel pump Flow : 243 lt/min (2700 rpm)
Pressure : 400 bar
CONTROLS
Ergonomic servo controlled joysticks mounted on the
seat control driving and front loading operation. Same
joysticks also control backhoe operation when the
operator seat is turned to backhoe side.
TIRES
Front : 10 x 16.5 10 Pr Skz
Rear : 10 x 16.5 10 Pr Skz
OPERATING WEIGHT
Operating weight (with standard equipment* : 3.800 kg
* Operating weight (includes machine equipped with
420 mm backhoe bucket, shovel without forks,
with 75 kg operator weight and full fuel tank.

DRIVE SYSTEM
•Servo controlled Axial Piston Variable Displacement
Double Pumps driving Radial Piston, Multi-stroke
hydraulic motors enabling forward and reverse motion.
•Service Brake is provided by Hydraulic Driving System
•Spring on, hydraulic pressure off park brake system
•Travel speeds 0-12 km/h foward and revese.
CAB & HOOD
•Ergonomic & Esthetic Interior Design provides
maximum space
•Wide Visual Angle
•Full Rops /Fobs cab with sound proofıng
•Two joysticks for all controls ergomically mounted
ontoseat
•Air conditioner
•Multi-functional Seat with seatbelt
•Easy to read full color LCD display
•Ergonomic & Elegant hand and foot Throttle
•Battery isolator
•Ease of service maintenance
•Well protected fuse box inside the operator cab

Notice: HIDROMEK has the right to modify the
specifications and design of the model
indicated on this brochure without prior notice.

Attachments
Hydraulic Breaker Standard Bucket Forks Mounted on
Quick Coupler Dozer Blades
LOADER PERFORMANCE
4 in 1 bucket capacity (m3) 0.35
Max. bucket breakout force (kgf) 2883
Max. loading arm breakout force (kgf) 2600
Lifting capacity to maximum height (kg) 500

BACKHOE PERFORMANCE
Bucket capacitiy (m3) 0.06
Max. bucket breakout force (kgf) 1985
Max. dipper breakout force (kgf) 1500
Lifting capacity to maximum height (rear) (kg) 332
