Description
HMK 102 B ALPHA GREENTEC
DESCRIPTION

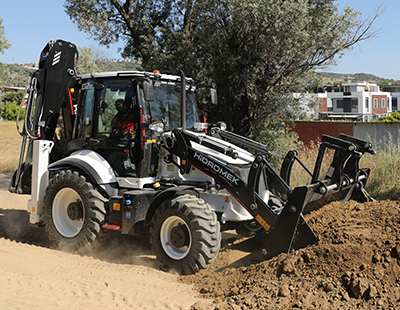

K4 Series, designed for severe geographical conditions and heavy working conditions, increases your productivity with its strong structure and efficient hydraulic system providing maximum breakout force even at lower revolutions and having high oil flow.
HİDROMEK K4 Series backhoe loaders facilitating works in excavation, infrastructure, superstructure, agriculture, forestry, landscaping and industrial areas thanks to their use with different attachments such as leveling shovel, forklift, hammer, auger, log, pendulum bucket, snow plow, scrap and paper collection bucket, bottom opening (big bag) bucket, stone collecting bucket, trapeze bucket, ripper and polyp attachment provide the benefits you expect.
20% Faster
K4 series backhoe loaders with accelerated movements through improved loader cylinder design do a lot of work in a short time during loading and unloading operations.
3% More Efficient
K4 Series backhoe loaders produce more work with less fuel as a result of the improvements made in cylinder design.
The Newest and The Best Solution For Your Work! HİDROMEK’s fourth generation backhoe loaders new K4 Series are your new assistants at your work with their perfect digging and loading performance. K4 Series backhoe loaders drawing attention with their innovations and superior technology offer high performance with easy and safe usage and comfortable cabin in the fields and in the city.
Specification
- Weight
- 8.95 t
- Standard tyres
- VR 16/70×20-12PR HR 16.9-28 14PRVR
- Bucket width
- 2.22 m
- Bucket capacity
- 1 m³
- Bucket capacity backhoe
- 0.18 m³
- Drive
- A
- Transport length
- 6.017 m
- Transport width
- 2.422 m
- Transport height
- 3.604 m
- Tear-out force
- 72.32 kN
- Tear-out force backhoe
- 68.8 kN
- Max. Reach horizontal
- 6.819 m
- Dredging depth
- 5.606 m
- Max. discharge height
- 4.679 m
- Travel speed
- 40 km/h
- Model series
- HMK
- Engine manuf.
- Perkins
- Engine type
- 904J-E36TA
- Engine power
- 55.4 kW
- Displacement
- 3.621 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 424/1200 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 98×120 mm
- Emission level
- V/Tier 4 f
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
Hidromek HMK 102 B Alpha Greentec FAQ
When was the Hidromek HMK 102 B Alpha Greentec manufactured?
The Hidromek HMK 102 B Alpha Greentec was first produced in 2021.
How much does the Hidromek HMK 102 B Alpha Greentec weigh?
The Hidromek HMK 102 B Alpha Greentec weighs 9.05 tons.
What are the transport dimensions of the Hidromek HMK 102 B Alpha Greentec backhoe loader?
The transport dimensions of the Hidromek HMK 102 B Alpha Greentec are 6.09 meters in length, 2.292 meters in width, and 3.78 meters in height.
What is the travel speed of the Hidromek HMK 102 B Alpha Greentec backhoe loader?
The Hidromek HMK 102 B Alpha Greentec has a travel speed of 40 km/h.
What are the undercarriage specifications of the Hidromek HMK 102 B Alpha Greentec?
The Hidromek HMK 102 B Alpha Greentec has an all-wheel drive system and is equipped with standard tyres sized 16.9×28-14 PR.
What are the dredging depth and maximum horizontal reach of the Hidromek HMK 102 B Alpha Greentec?
The Hidromek HMK 102 B Alpha Greentec has a dredging depth of 5.703 meters and a maximum horizontal reach of 6.854 meters.
What are the tear-out forces of the Hidromek HMK 102 B Alpha Greentec backhoe loader?
The Hidromek HMK 102 B Alpha Greentec has a tear-out force of 68.852 kN and a backhoe tear-out force of 21.8 kN.
What is the maximum discharge height of the Hidromek HMK 102 B Alpha Greentec?
The Hidromek HMK 102 B Alpha Greentec has a maximum discharge height of 4.679 meters.
What are the specifications of the primary work tool on the Hidromek HMK 102 B Alpha Greentec?
The primary work tool of the Hidromek HMK 102 B Alpha Greentec has a bucket capacity of 1 cubic meter, a bucket width of 2.22 meters, and a backhoe bucket capacity of 0.18 cubic meters.
