Description

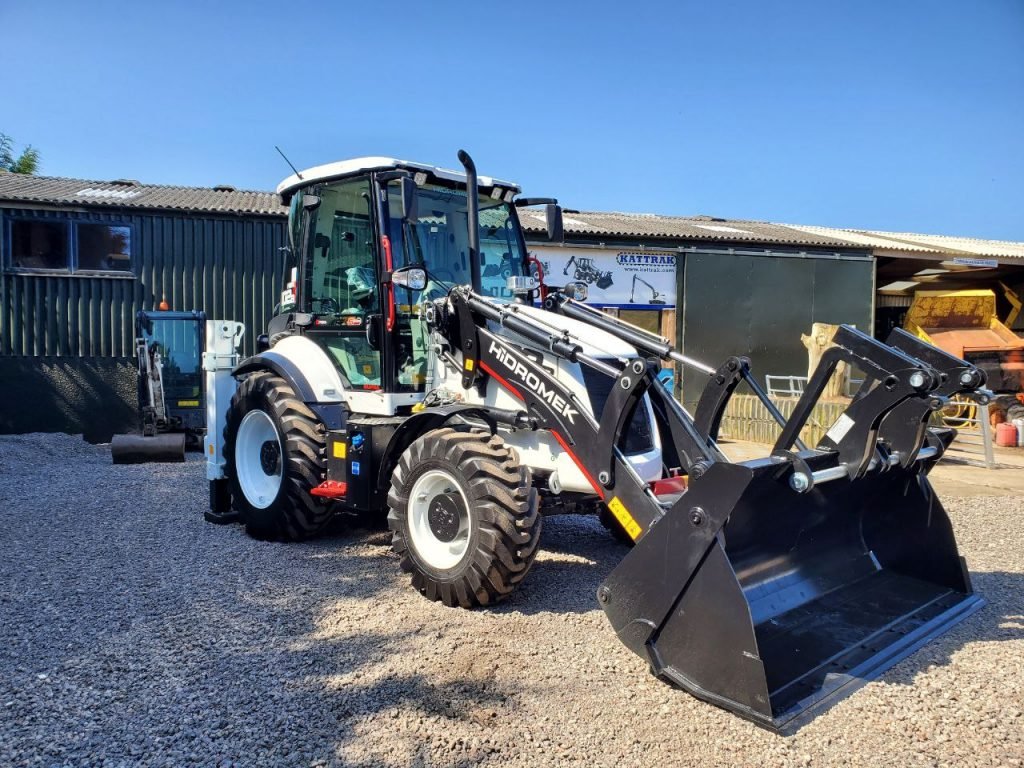

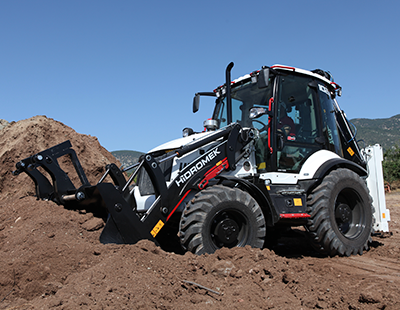

HMK 102 B Supra BACKHOE LOADERS
DESCRIPTION
K4 Series, designed for severe geographical conditions and heavy working conditions, increases your productivity with its strong structure and efficient hydraulic system providing maximum breakout force even at lower revolutions and having high oil flow.
HİDROMEK K4 Series backhoe loaders facilitating works in excavation, infrastructure, superstructure, agriculture, forestry, landscaping and industrial areas thanks to their use with different attachments such as leveling shovel, forklift, hammer, auger, log, pendulum bucket, snow plow, scrap and paper collection bucket, bottom opening (big bag) bucket, stone collecting bucket, trapeze bucket, ripper and polyp attachment provide the benefits you expect.
20% Faster
K4 series backhoe loaders with accelerated movements through improved loader cylinder design do a lot of work in a short time during loading and unloading operations.
3% More Efficient
K4 Series backhoe loaders produce more work with less fuel as a result of the improvements made in cylinder design.
Specification
- Weight
- 9.3 t
- Standard tyres
- VR 16/70×20-12PR HR 16.9-28 14PR
- Bucket width
- 2.42 m
- Bucket capacity
- 1.1 m³
- Bucket capacity backhoe
- 0.18 m³
- Drive
- A
- Transport length
- 6.017 m
- Transport width
- 2.422 m
- Transport height
- 3.604 m
- Tear-out force
- 72.32 kN
- Tear-out force backhoe
- 68.8 kN
- Max. Reach horizontal
- 6.819 m
- Dredging depth
- 5.606 m
- Max. discharge height
- 4.735 m
- Travel speed
- 40 km/h
- Model series
- HMK
- Engine manuf.
- Perkins
- Engine type
- 904J-E36TA
- Engine power
- 74.4 kW
- Displacement
- 3.621 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 430/1500 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 98×120 mm
- Emission level
- V/Tier 4 f
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
Hidromek HMK 102 B Supra FAQ
When was the Hidromek HMK 102 B Supra manufactured?
The Hidromek HMK 102 B Supra was first produced in 2021.
How much does the Hidromek HMK 102 B Supra weigh?
The Hidromek HMK 102 B Supra weighs 9.24 tons.
What are the transport dimensions of the Hidromek HMK 102 B Supra backhoe loader?
The transport dimensions of the Hidromek HMK 102 B Supra are 6.05 meters in length, 2.29 meters in width, and 3.59 meters in height.
What is the travel speed of the Hidromek HMK 102 B Supra backhoe loader?
The Hidromek HMK 102 B Supra has a travel speed of 40 km/h.
What are the undercarriage specifications of the Hidromek HMK 102 B Supra?
The Hidromek HMK 102 B Supra has an all-wheel drive and standard tyres sized Front: 16/70×20-12PR and Rear: 16.9-28 14PR.
What are the dredging depth and maximum horizontal reach of the Hidromek HMK 102 B Supra backhoe loader?
The Hidromek HMK 102 B Supra has a dredging depth of 5.627 meters and a maximum horizontal reach of 6.845 meters.
What are the tear-out forces of the Hidromek HMK 102 B Supra?
The Hidromek HMK 102 B Supra has a tear-out force of 68.852 kN and a backhoe tear-out force of 21.8 kN.
What is the material handling capacity of the Hidromek HMK 102 B Supra in terms of maximum discharge height?
The Hidromek HMK 102 B Supra has a maximum discharge height of 4.74 meters.
What are the specifications of the primary work tool on the Hidromek HMK 102 B Supra backhoe loader?
The Hidromek HMK 102 B Supra features a bucket with a capacity of 1.1 cubic meters and a width of 2.42 meters, along with a backhoe bucket capacity of 0.18 cubic meters.
